Orion Multi Built-In/Wall Mounted Smart Virtual Electric Fireplace with Real Flame Effect - Modern black electric fireplace with dancing flames.

Modern Flames Orion Multi Built-In/Wall Mounted Smart Virtual Electric Fireplace

by Modern Flames
SKU OR52-MULTI

FREE Shipping + No Sales Tax

$4,799.00
Size
Availability: Translation missing: en.general.icons.icon_check_circle icon 4 in stock, ready to be shipped

Notify me when back in stock

Fast & Free Shipping
Finance Options At Checkout
5-Star Customer Support
Get a Custom Quote Today
Message Us
Shipping: Please note that all Modern Flames authorized dealers have the same lead time as us.
Best Price Online: Find a better price? We'll match or beat it!

Modern Flames Orion Multi Built-In/Wall Mounted Smart Virtual

  • HELIOVISION™ Flame Technology: Ultra-realistic, multi-dimensional flames look like the real thing from every angle — a massive upgrade over flat 2D electric flame effects.
  • Twice the Heating Power: With up to 10,000 BTUs (hardwired), this fireplace heats up to 450 sq ft — double what most standard electric fireplaces deliver.
  • Full Smart Home Control: Adjust flame style, heat, and scheduling from your smartphone via the Modern Flames App, or use the touchscreen, remote, or Wi-Fi — your choice.
  • Four Flexible Installation Options: Install as a front-facing, left-corner, right-corner, or bay view unit — giving you the freedom to design around your actual room layout.
  • Five Sizes, One Fireplace Line: Available in 52", 60", 76", 100", and 120" widths so you can find the perfect fit whether you have a cozy bedroom wall or a grand living room feature wall.
  • No Venting or Gas Required: Simply plug in or hardwire — no chimney, no gas line, no contractor headaches — making it possible to add a fireplace virtually anywhere in your home.
Specifications
Electrical
  • Heat Output: Up to 10,000 BTUs (hardwired); 5,000 BTUs (plug-in)
  • Heating Area: Up to 450 sq ft
  • Installation Type: Plug-in or hardwire
  • Recommended Breaker: Dedicated 20 Amp
  • Heat Settings: Low / High
  • Thermostat: Built-in
  • Timer: Daily/weekly programmable
Flame & Controls
  • Flame Technology: HELIOVISION™ (V1) / HELIOVISION™ Enhanced (V2)
  • Flame Styles: 3 styles
  • Flame Colors: 9 color options (18 total V2 display combinations via enhanced system)
  • Sound Effects: Ambient crackling (V2 enhanced audio clarity)
  • Controls: Touchscreen, remote, Wi-Fi app
General
  • Sizes Available: 52", 60", 76", 100", 120"
  • Overall Height: 24.31"
  • Overall Depth: 9.44"
  • Viewing Area Height: 18.44" (all models)
  • Installation Options: Built-in or wall-mounted; front, left-corner, right-corner, or bay view
  • Venting Required: No
  • Warranty: 5-Year

Orion Multi Built-In/Wall Mounted Smart Virtual Electric Fireplace

Introducing the Modern Flames Orion Multi Smart Electric Fireplace—where cutting-edge design meets cozy realism.

Both V1 and V2 offer HELIOVISION™ flame technology, multi-size availability, and strong heating performance, while V2 enhances the experience with improved visuals, upgraded app control, and refined flame realism.

Designed for versatility, it offers 4 installation options and comes in 5 sizes to fit any room.

Orion Multi Built-In/Wall Mounted Smart Virtual Fireplace Features

  • HELIOVISION™ Flame Technology: Multi-dimensional realistic flames viewable from multiple angles
  • 3 Flame Styles & 9 Colors: Hybrid, Wood, Gas-inspired flame visuals
  • Multicolor Ember Bed & Downlighting: Adds depth and ambiance
  • Up to 10,000 BTUs: Heats up to 450 sq ft
  • Smart Controls: Wi-Fi app, remote, and touchscreen
  • Four Installation Options: Front, left corner, right corner, bay
  • Multiple Sizes: 52"–120" available
  • No Venting Required: Fully vent-free installation
  • Driftwood Logs & Crushed Glass: Included for realistic fire presentation
  • Ambient Crackling Sounds: Enhances fireplace realism
  • Timer & Thermostat: Daily/weekly automation
  • Dual Heat Settings: Adjustable output for efficiency
Feature Orion V1 Orion V2
Core platform HELIOVISION™ flame technology HELIOVISION™ flame technology

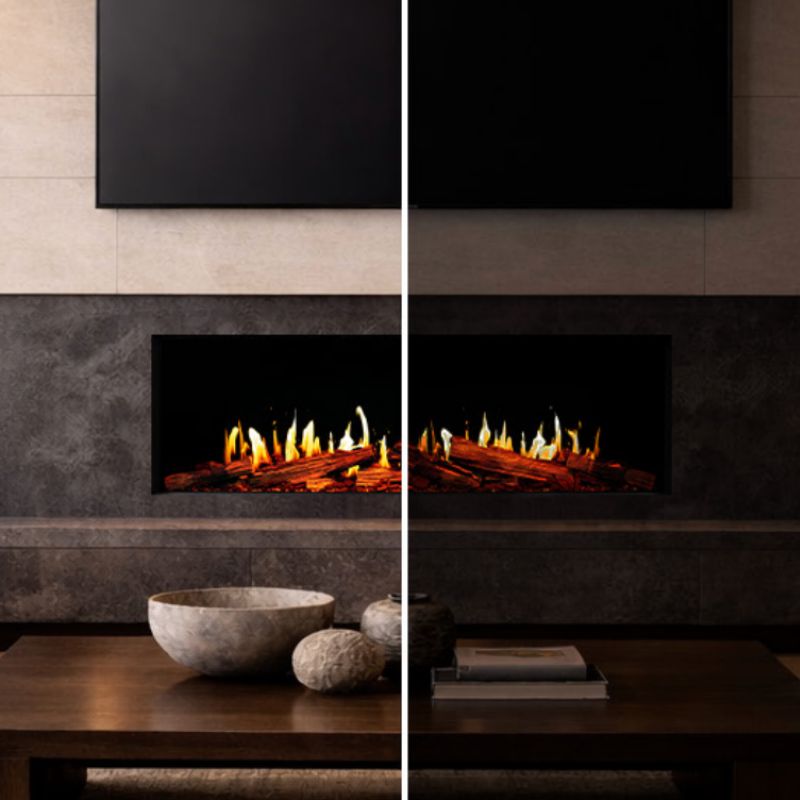

Flame presentation Realistic multi-dimensional flames Enhanced realism with deeper, more dimensional flame effects and improved contrast
Controls Modern Flames app, remote, and touchscreen controls Modern Flames+ app with improved interface, enhanced controls, and over-the-air flame updates
Media / log presentation Standard log set and media package, optional TruWood upgrade TruWood™ lit log set with active ember bed for upgraded realism
Audio experience Ambient crackling fire sounds More immersive crackling audio with Bluetooth streaming support

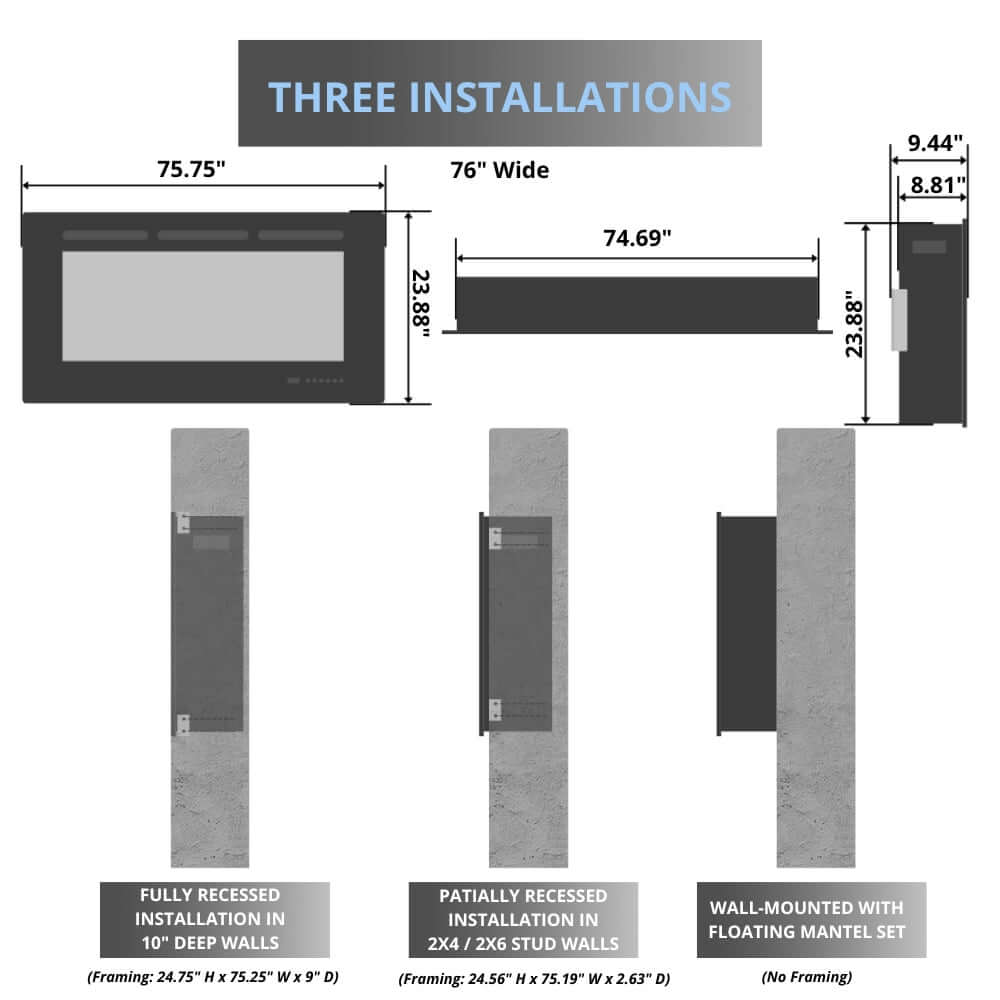

OVERALL DIMENSIONS (H × D fixed at 24.31" × 9.44"):

  • 52" model: 51.50" W
  • 60" model: 60" W
  • 76" model: 75.75" W
  • 100" model: 100" W
  • 120" model: 124.38" W

VIEWING AREA (H fixed at 18.44"):

  • 52": 50.12" W
  • 60": 58.63" W
  • 76": 74.44" W
  • 100": 98.75" W
  • 120": 123" W

WHAT'S INCLUDED:

  • Electric Fireplace Assembly - 1 set
  • Hardware Kit - 1 set
  • Remote Control - 1 pc.
  • Wall Mount Bracket - 1 pc.
  • Crushed Glass - 1 bag
  • Driftwood Logs - 1 set
  • Drywall Stop - 1 pc.
  • User's Manual - 1 pc.
Installation
  • Plug-In or Hardwired Installation
Product Videos
Downloads & Resources

Every order ships free to any address in the contiguous United States — no minimums, no fine print.

Your order ships via FedEx or UPS — delivered to your door within 3–7 business days.

Why Electric Fireplaces USA?

The most trusted electric fireplace specialists online — expert advice, authorized brands, and dedicated support before and after every purchase.

Authorized Modern Flames Dealer
Full manufacturer warranty honored on every purchase. Direct relationship with Modern Flames — not a grey-market reseller.
Real Fireplace Experts
Call (877) 429-3322 and speak with a specialist who knows electric fireplaces inside and out. Free advice, no pressure, no scripts.
Price Match Guarantee
Find the same product cheaper at any authorized dealer? We'll match or beat their price. Call us before you buy.
Free Shipping, Always
Free shipping on every order to the contiguous US — no minimums, no hidden charges.
30-Day Returns
Return any uninstalled item in original condition within 30 days for a full refund.
Post-Purchase Support
Here after delivery too — warranty questions, part lookups, installation guidance, and more.
Have a question? We're here to help.
📞 (877) 429-3322

Frequently Asked Questions

  • The Orion Multi 52-inch offers four viewing configurations — front view, left corner, right corner, or bay (3-sided) — and three mounting methods: fully built-in (recessed into a 9-inch deep wall), partially recessed into a standard 2x4 wall, or wall-mounted just 1½ inches from the wall surface. No venting is required; it only needs to be hardwired or plugged in. Simply remove the included side panels to switch between single-sided and multi-sided configurations.

  • The Orion Multi 52-inch features a high-efficiency PTC ceramic heater that can produce either 5,000 or 10,000 BTUs depending on how it is wired — the higher 10,000 BTU output requires hardwiring. This output is sufficient for supplemental heating of rooms ranging from approximately 400 to 800 square feet. The heater can also be turned off entirely so you can enjoy the flame display year-round without generating heat.

  • The Orion Multi 52-inch supports multiple control methods: built-in touch controls on the unit, an included full-function handheld remote, and Wi-Fi control via the Modern Flames mobile app available on iOS and Android. It is also compatible with Amazon Alexa and Google Home for voice-activated control, and the app allows you to set a weekly automated schedule for the heater and flames to run on their own.

  • If you register the product with Modern Flames within 30 days of purchase, you receive a 5-year limited warranty; without registration, coverage drops to 2 years. The warranty is only valid when the fireplace is purchased from an authorized Modern Flames dealer. Modern Flames also includes a 1-year labor credit of up to $100 for one service call within that first year.

  • The Orion Multi 52-inch uses Modern Flames' proprietary HELIOVISION™ technology — an advanced LCD display that produces multi-dimensional, randomized flames that look consistent and realistic from any viewing angle. You can choose from 3 hyper-realistic flame patterns (Wood Burning, Gas Effect, or Hybrid), 6 flame colors (yellow, blue, green, orange, purple, white), 3 adjustable flame speeds, a 10-color ember bed with Fade Mode, and multi-color downlighting, totaling 18 distinct flame color display combinations. A premium Bluetooth speaker with 3 crackling sound options and an 18-inch-tall viewing area with adaptive brightness round out the experience.
